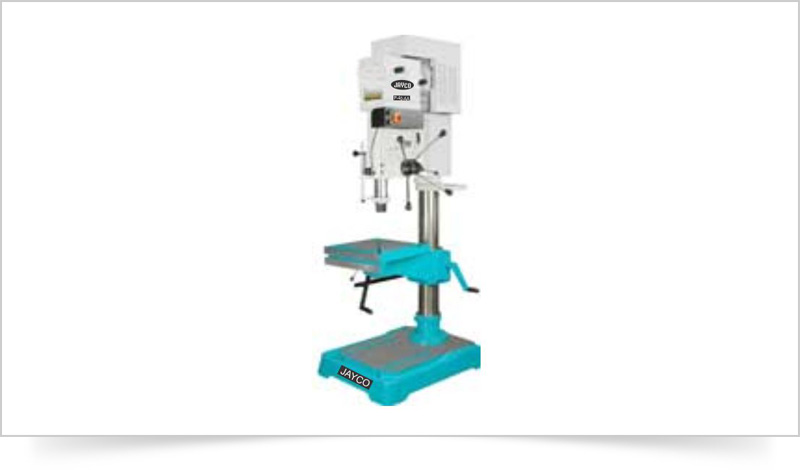

| Specification | Model P40-AA PILLAR |
| Drilling Capacity MS/CI |
40/45mm |
| Tapping in MS |
25mm |
| Spindle Taper / Travel |
MT-4 / 250mm |
| Nos. of Spindle Speed |
9 / 70-1225rpm |
| Spindle Sleeve Diameter of RAM |
78mm |
| Nos. of Spindle Auto Feed/Range |
2/0.05 & 0.09 |
| Column Diameter |
130mm |
| Max./Min. Drilling Radius |
N/a |
| Max./Min. Dist. Spindle Center to Column |
345mm Fix |
| Max./Min. Spindle Nose to Base |
920mm / 575mm Table |
| Vertical Travel of ARM |
N/a |
| Drill Head Traverse |
N/a |
| Working Table |
450x455mm |
| Drilling Head Motor |
1.5hp / 960rpm |
| Elevating Motor |
N/a |
| V-Belts | B-33 |
| Machine L x W x H | 880 x 675 x 1850mm |
Standard Equipments
Complete with Electrical suitable for 415v/50Hz/3ph AC supply with Motor, Panel board, switches, Motor pulley.Optional Accessories :
| Tapping Control Panel |
Machine Lamp |
Drill Chuck with Arbour MT-2 or MT-3 |
| Coolant Pump with Tank & Fittings | Box Table | Drill Chuck with Arbour MT-4 |
