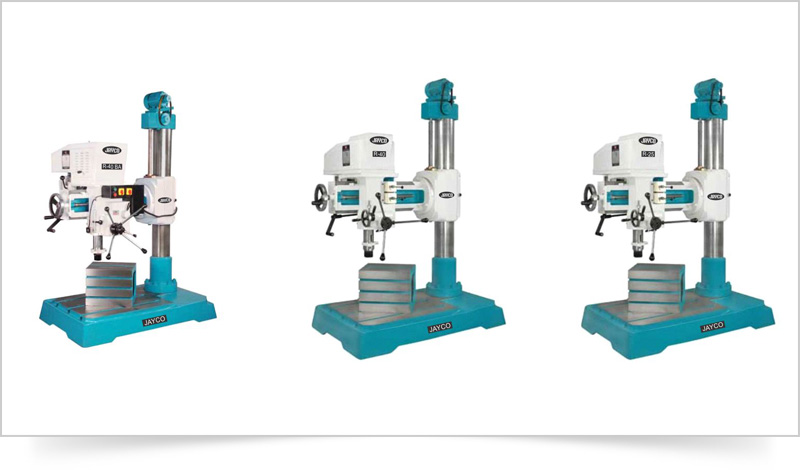

| Specification | Model R40-BA RADIAL |
Model R40 RADIAL |
Model R25 RADIAL |
| Drilling Capacity MS/CI |
42/45mm |
40/45mm |
25/32mm |
| Tapping in MS |
20mm |
25mm |
12mm |
| Spindle Taper / Travel |
MT-4 / 250mm |
MT-4 / 250mm |
MT-3 / 125mm |
| Nos. of Spindle Speed |
8 / 88-2600rpm |
8 / 88-2600rpm |
8 / 105/2651rpm |
| Spindle Sleeve Diameter of RAM |
78mm |
78mm |
78mm |
| Nos. of Spindle Auto Feed/Range |
2/0.05 & 0.09mm/rev |
Fine Feed |
Fine Feed |
| Column Diameter |
170mm |
170mm |
130mm |
| Max./Min. Drilling Radius |
1005mm |
1005mm |
1005mm |
| Max./Min. Dist. Spindle Center to Column |
920/385mm |
920/385mm |
640/330mm |
| Max./Min. Spindle Nose to Base |
850/250mm |
850/250mm |
860/100mm |
| Vertical Travel of ARM |
775mm | 700mm |
600mm |
| Drill Head Traverse |
750mm | 750mm |
650mm |
| Working Table |
300x300x385mm | 300x300x385mm |
200x200x265mm |
| Drilling Head Motor |
1.5hp / 1440rpm | 1.5hp / 1440rpm |
1.5hp / 960rpm |
| Elevating Motor |
1hp / 1440rpm | 1hp / 1440rpm | 0.5hp / 1440rpm |
| V-Belts | B-47 / B-25/B-26 | B-46 / B-47 / B-23 / B-24 | B-40 / B-25 / B-26 |
| Machine L x W x H | 1350 x 850 x 1825mm | 1350 x 850 x 1825mm | 930 x 580 x 1750mm |
Standard Equipments
Motor pulley.Optional Accessories :
| Tapping Control Panel |
Machine Lamp |
Drill Chuck with Arbour MT-2 or MT-3 |
| Coolant Pump with Tank & Fittings | Box Table | Drill Chuck with Arbour MT-4 |
